 Post subject: CRT, LCD, Video Inputs, Lightgun HD and More Guides
PostPosted: Sun Jan 10, 2010 9:41 pm
Offline
Next-Gen
User avatar
 Profile

Joined: Tue Jan 05, 2010 10:59 am
Posts: 10176
Location: Southern California
CRT vs LCD, Video Inputs, Lightguns on HD and More Guides


My WEGA breakdown and repair starts here: viewtopic.php?p=434526#p434526

The $20 WEGA Repair Guide: viewtopic.php?p=458437#p458437


I posted bits and pieces of this guide in other areas, figured I would put it all together for anyone to read and offer insight. The purpose of this subject is sorting out HD Video choices for Retro and Modern Consoles, Especially in trying to solve light gun capability on HD TV's.

Mini Guides and other Guide Links, scroll to the bottom of this Post.

Some points to consider for the Retro Gamer.

- S-Video uncommon for most current HDs

- Widescreen vs 4:3 TV has less surface area for a given size

- VGA input may not support 640x480 for consoles such as a Dreamcast VGA

- Lightguns won't work on HDs

- LCDs dot crawl issues for Retro Consoles

- CRTS very uncommon to find brand new

I'll try to tackle these through this post.


Tested Display Screens

Sony Wega HD CRT, model number KV-32HS500:
http://en.wikipedia.org/wiki/FD_Trinitron/WEGA
http://www.docs.sony.com/release/specs/KV32HS500spec.pdf
http://www.docs.sony.com/release/KV32HS500diagram.pdf
http://www.docs.sony.com/release/KV32HS500.pdf
http://www.schematicsforfree.com/archiv ... manual.pdf
Vizio LCD, model number VW32L HDTV40a:
http://70.182.180.218/documents/downloads/hdtv/VW32L/Manual.pdf


Hyundai CRT 17" Computer Monitor V773
http://hyundaipceu.com/NEW/product/pop_up/specification/monitor/crt_spec/v773.htm


Sony LCD 17" Computer Monitor SDM-HX73
http://www.docs.sony.com/release/SDMHX73revision.pdf
http://www.docs.sony.com/release/SDMHX73_QS.pdf



Compac CRT 17" Computer Monitor FS7600
http://h20000.www2.hp.com/bizsupport/Te ... en&cc=us#3
http://bizsupport2.austin.hp.com/bc/docs/support/SupportManual/c00385928/c00385928.pdf
http://bizsupport2.austin.hp.com/bc/docs/support/SupportManual/c00276999/c00276999.pdf


Dell™ 17" M781p Color Monitor
http://support.dell.com/support/edocs/m ... c/spec.htm

Consoles Tested
N64, PS1, Dreamcast, Gamecube, PS2, PS3 and Wii.

HD CRT TO HD LCD COMPARISON
The Sony Wega KV-32HS500 is one of the few SQUARE 4:3 120hz CRT HD that were sold before Widescreen/LCD dominated the market. Supports 480i, 480p, 720i, 720p, 960i and 1080i. It is DVI no big deal using DVI to HDMI conversion cable for DVD and cable TV. Has 2 component inputs which I use for PS2 and for Gamecube. I love CRT 4:3 especially for old school games which mostly don't support the wide screen format. The CRT at 480p displays a very sharp image.

Vizio LCD VW32L HDTV40a is a widescreen like just about all LCD's. When running older PS2 with component cables at 480p the LCD tends to show pixels kinda like dots shown on a blown up comic book pic. The Dot Crawl is worse when you fill 4:3 image to widescreen. Newer consoles such as PS3 utilizing HDMI is where LCD really shines. Tested the game World at War 2 which came out with crystal clear graphics. I would say in game screen quality are up there as a Blue-Ray movie. Does support VGA input with resolutions up to 1336 x 768.

The Sony 4:3 HD CRT looks great with composite, better color separation with S-video and really comes out crystal clear with Component Cables. Just picked up PS2 Gran Turismo and Tourist Trophy. Both look great at 480p. Setting game option to 1080i mode switches to wide Screen (even with 4:3 setting) with black bars top and bottom. However does have a very sharp and clean anti-aliasing pic.

I have found that there is less color bleeding when using SVideo instead of Composite on a CRT. Test machines include older retro consoles N64, PS1, Dreamcast, and Gamecube on both Composite and SVideo. Also tested PS2 which improved from Composite to SVideo and finally the best getting 480p with Component. Even my low resolution Gameboy Advance games display nicely with the Gamecube Gameboy player on the big screen using SVideo and even better going thru component. You can see every blocky pixel clearly instead of a composite color saturated fuzzy image.

Here's a comparison of Zelda with Component on the left, Composite on the right.
Details details its all in the details.

The picture scaling problem shown is extreme, but it shows how bad "Dot Crawl" from scaling can get. As in a composite bleed over, imagine the pixels jumping around as a lower resolution image is in motion on a higher resolution screen.

Darryl Shreve wrote:
http://blogs.wayne.edu/lighting/2012/11/08/does-size-matter/

Videos downscale well, but they don’t upscale with clarity. So what does this mean? Simply put, a larger video signal with more information will look good on larger screens and anything smaller. Conversely, a smaller image will only look good on a smaller screen. It doesn’t have enough information to upscale properly.


Note the difference below in image quality based upon the number of pixels represented on screens with different Native Resolution sizes below. This is a SD signal and it does not upscale well to HD.

Niode wrote:
CRT doesn't have a native resolution so you don't get the same issue you get with LCDs. CRTs just display the content in the resolution it was intended to be viewed in. No up scaling required.
Wiki wrote:
http://en.wikipedia.org/wiki/Native_resolution

Native Resolution

The native resolution of a LCD, LCoS or other flat panel display refers to its single fixed resolution. As an LCD display consists of a fixed raster, it cannot change resolution to match the signal being displayed as a CRT monitor can, meaning that optimal display quality can be reached only when the signal input matches the native resolution.

While CRT monitors can usually display images at various resolutions, an LCD monitor has to rely on interpolation (scaling of the image), which causes a loss of image quality.
www.practical-home-theater-guide.com wrote:
In contrast to LCD displays, plasma televisions and CRT TVs have a virtually instantaneous response time that is at least a thousand times faster than that of the fastest LCDs.

This is mainly limited by the speed of their video processing engine rather than by the time it takes to fire the display phosphor; this is in the order of nano-seconds as against the milliseconds required for the liquid crystals to change state in LCD panels. In this respect, LCD panels still have a long way to go.

Yet, there is a further technical difference between the two technologies that renders plasma superior when it comes to pixel response time. Control of pixel intensity in a plasma display does not rely on the same drive process used in an LCD panel. In an LCD display, a minor adjustment in pixel intensity level is brought about by altering the drive signal in very small steps to adjust the twisting action of the liquid crystals, and which in turn controls the amount of light reaching the surface.

http://www.practical-home-theater-guide.com/lcd-response-time.html

Non Modded Console Video Connection
I chose HDCRT over a regular CRT. However, some prefer a regular CRT to obtain scanlines. I found the HDCRT offers a clean picture even for the retro consoles, sharpening all the detail.

HDCRT RF COAXIAL
Atari 2600, 5200 and 7800.

HDCRT COMPOSITE
NES and PlugnPlays.

HDCRT SVIDEO
N64, PS1 and DREAMCAST
VGA on Dreamcast if your TV supports it.

HDCRT COMPONENT
GAMECUBE, PS2, XBOX and Wii.

PLASMA or LCD HDMI
360 and PS3


A list in progress of Console Video Choices: thelolotov Best Video Connections

Xbox 360 console revision differences of Video output connections:
http://www.racketboy.com/forum/viewtopic.php?f=52&t=18367&p=879872#p879872


Widescreen 16:9 vs Square 4:3 is a personal choice. Keep in mind Retro consoles only have 4:3 mode. Playing Street Fighter say on a PS1 will give overweight fighters on the widescreen. By the same token, anamorphic widescreen movies on a stretched 4:3 causes a buncha skinny actors.

God of War 2 is phenomenal; dare I say almost PS3 quality graphics when kicked up to Progressive Scan (Hold L1-L2-L3-Square-Circle during game load. If you get a purple initial text screen then it is high res mode. Choose progressive and prepare to be amazed. :shock: ) The only two PS2 games I know of that support 1080i are Gran Turismo 4 and Tourist Trophy, gonna have to snag them from gamestop.


HD PS2 list, use with a Component Cable connection. Couple of games you have to hold Square Circle while load. Most use the Triangle and the X button during load.

http://en.wikipedia.org/wiki/List_of_PlayStation_2_games_with_HD_support

There is also the PS2 Xploder, on my TV I did get a bordered image at 1080i setting. Unfortunately my CRT HD has no Zoom to compensate. Any resolution above 480p also results in a reduced off center image. Maybe useful if your HD has good controls for zoom and stretch like a computer monitor. On the plus side I did get a full screen image at 480p out of 480i only games. By tapping Square repeatedly, users are able to cycle through the various output resolutions, which include 480i, 480p, 576p, 720p, and 1080i. PAL and NTSC switching is also possible. Unfortunately HDAdvance/HDLoader installed games won't work.

For owners of PS2 VGA adapters a selection of output resolutions is possible:
640x480 (60hz)
640x480 (72hz)
640x480 (75hz)
640x480 (85hz)
800x600 (56hz)
1024x768 (60hz)
1280x1024 (60hz)

http://www.superufo.com/welcome/vga-adaptor/vga.htm


THE LIGHT GUN ON HD
Pretty much any Non-HD tube TV will work with a lightgun. Brightness, Contrast and Sharpness adjustment help to pickup the Lightgun sigmals. Its when you get into LCDs and HD CRTs you run into problems.

Flat Screen terminology can be misleading when it comes to Light Gun compatibility. A Crt can be a flat screen and still support a Light Gun, but only if a standard definition tube.

img]http://www.worldofpwnage.com/wp-content/uploads/2007/08/crt_vs_lcd_b.jpg[/img]

The Sony Wega HD CRT is very heavy compared to even a regular CRT of the same size, 200 you gotta be kidding pounds! This Sony HD version is 120hz so older light guns won't work. There is no VGA connection, no House of the Dead on Dreamcast. When using a light gun with composite and also S-video the gun does flash the screen but the gun sight on the screen tends to wander due to looking for 50-60hz signal. I'm thinking about a VGA to Component transcoder but due to cost and unsure of it working have held off. I do know a direct VGA to Component cable only results in a purple off center screen. Even tried switching the red-blue-green Y-Pb-Pr cables around.


The Dreamcast with a direct VGA adapter such as the one sold on Racketboy; the regular lightgun will work if the VGA computer monitor is a CRT. The Dreamcast VGA adapter grounds out a couple of pins on video internally, telling Dreamcast to switch to 640 x 480 VGA mode. Additional resolution in graphics kind of like what Bleemcast does with PS1 Metal Gear. If you have a HD CRT with direct VGA input along with the Dreamcast VGA box the light gun might work. It all depends on the scan rate of your view screen.

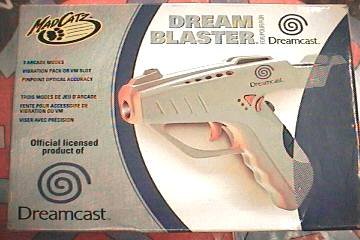

The only Sega controller that is region locked out on U.S. models.


3rd party models work fine.


Throw in the force pack for light up lightgun vibration recoil!

Image Image

Turn off Auto Fire before plugging in.


The Dreamcast Lightgun List
Wiki wrote:
http://en.wikipedia.org/wiki/Dreamcast_light_guns

Commercial games
Counter-intuitively, Silent Scope does not support light guns.
Death Crimson OX (Only the Japanese Release supports the European Light-Guns)
Death Crimson 2 (Japan Only Release)
Demolition Racer: No Exit ('Big Car Hunter' minigame)
Confidential Mission
House of the Dead 2
Virtua Cop 2 (in the Sega Smash Pack and also as a stand-alone release in Japan)

Freeware games
bloop
SMSPlus
NesterDC
Pop a Cap
Revolver

Computer Monitor VGA Dreamcast Lightgun results are:
Hyundai CRT V773: Light gun works great, smooth tracking at 640x480 resolution.
Compaq CRT FS7600: Light again works flawlessly, smooth tracking again at 640x480 resolution.
Sony LCD SDM-HX73: As expected Lightgun will not work on LCD.

Dreamcast VGA

Dreamcast VGA Cable:
http://www.racketboy.com/store/sega-dreamcast/dreamcast-vga-cable-box.html


Dreamcast VGA Box with bypass to allow Non-VGA games to run through S-Video or Composite:
http://www.racketboy.com/store/featured/dreamcast-vga-box-svideo-av.html


640x480 is a lower resolution not supported by a lot of current HDTVs. Best to bring your Dreamcast and VGA adaptor and test at the store to be absolutely sure. The ideal HD will also have S-Video, another getting to be uncommon input. Definitely make sure you get a VGA Box over just the cable, for that S-Video/Composite option. Not all Dreamcast games are VGA compatible.

LCD vs CRT Monitor Screen Resolutions
LCD monitors tend to be brighter and sharper for computer use. Unlike the LCD, a CRT will also support older screen resolutions. I have found this a benefit for Dreamcast 640x480 resolution and older operating systems such as OS9 256 color. A lot of newer LCDs do not have older video modes, a good idea to test before purchase.

Elusive CRT monitors and even regular tube TVs are really getting hard to find.
The cathode tube TV is not sold new any more. Get them at Thrift Stores, Craigs List or Swap Meets while you can, CRTs getting as rare as that contest winner game cart.

Another reason for the CRT. VGA Dreamcast House of the Dead 2 with Lightguns. :mrgreen:


Attachment:
Dell Monitor Dreamcast Lightgun.jpg
Dell Monitor Dreamcast Lightgun.jpg [ 242.83 KiB | Viewed 83983 times ]


More Dreamcast VGA info:
http://www.racketboy.com/retro/2006/05/dreamcast-vga-cable-compatibility-list.html

Here is a chart of different Video resolutions. Dreamcast is 640x480 VGA.
Some Monitors and HDTVS with VGA input not support that lower resolution.

PS2 Guncon 2 with yellow T-Video adapter and USB connection. Depending on CRT TV may work. If using Component cables plug yellow T-Video adapter in green cable Y connection. The Guncon utilizes feed out video out of Playstation Console. When on the Calibration screen, first fire at screen to enable the gun. Point the Guncon 2 away from the screen. Press Trigger and the SELECT button. It's on the Left hand side of the gun, nearest the muzzle. This will put the calibration into Progressive scan mode and a little message will appear on screen to confirm this. There is also a 2 point adjustment for Guncon 2 only. Aim away from screen Press trigger and C button at the bottom of the gun. It's then possible to calibrate as normal. It has been posted on the Internet that on a Sony KX32FQ70U TV it works perfectly. On a search of model numbers on the Internet closet match is a V not X, KV-32FQ70U which is a wide screen but not a HD TV.

The Guncon 2 supports regular Non-HD CRT TVs.
It also has a 480p mode which requires a CRT Enhanced (EDTV) Definition TV.
I have not found a HD CRT or LCD that works with the screen sensor Lightguns.


A second note is that the USB Guncon 2 has no vibration function nor LED's. The blue controller port Namco Guncon does have vibration and LED's. The gun kicking back at you really adds to gaming experience.


This does not work on the Sony HD CRT KV-32HS500 utilizing both Composite and Component with green y connection. During the calibration up and down seems to work but the sight jumps around left and right. This looks to be the problem with the HD scan line going at a higher hertz rate. PS2 and Dreamcast lightguns ended with the same results in both Composite and S-Video modes. If there were a game that only required moving sight up and down then the guncon would work.

I also tried the PS1 grey Sony AV Adaptor #SCPH-1160. Though it states to work only on the PS1 model #SCPH-5501 the AV adaptor works fine with PS2 and add on Component cables. However with the 120hz CRT TV same results of Guncon 2 Lightgun tracking problem. Basically same tracking issue as in hooking Lightgun video cable up to green y Component lead. There is a black PS2 version Sony AV Adaptor #SCPH-10130U that appears to have identical connections.



This link shows Guncon AV Adaptor hookup, Component can easily be subsituted.:
http://www.bandainamcogames.co.jp/cs/list/guncon/bce.html


CRTGAMER wrote:
The AV adaptor is unique in allowing a simultaneous Component and Composite Connection for the PS2 and PS3.

wip3outguy7 made these great youtube videos on the Guncon.
Lot of insight on all the features, functions of the various buttons.

SCPH-1160 AV adaptor hookup to the Guncon:
http://www.youtube.com/watch?v=p1TiFrXmoBQ

Nyko Super Cobra & Guncon 2 reviews youtube video:
http://www.youtube.com/watch?v=qmUrK6kEafY

Japanese (black) Guncon 2 overview & how to tell if yours is real or fake youtube video:
http://www.youtube.com/watch?v=kD_isq7W-Mw&feature=related

Wireless lightguns that use an infrared sensor such as the SNES Superscope still require a non-HD CRT. The wireless sensor is simply replacing the cable of the lightgun.



REAR AND FRONT PROJECTION TVS
The Lightgun can't read the lens reflection from the internal projector. A blown up image from the projector.

Image[/quote]

Result is lightguns work on Non-HD CRT only. EDTV CRT is a maybe.

--------------------------------------------------------

I found another possible work around for the Lightgun HD problem. Not a great fix but yet another approach.

Instead of trying to get the Lightgun to work another idea is a Tilt Motion Sensor. Split Fish made a tilt sensor for the PS2. Possibly attaching to Lightgun then tilting Lightgun to move gunsight.

In testing this with Vampire Nights the Left and Right are backwards. Flipping the motion sensor upside down makes the up and down tilt backwards. Internal mod of switch location would fix that. However as long as gun is tilted the sight will keep moving in that direction. With rapid onslaught of enemies you are constantly moving the sight so depending on the game this works though it is awkward.

Spilt Fish Motion Sensor attached to PS2 controller:
http://www.splitfish.com/


There are new light guns that will work on any HD TV including LCD. The lightguns use a LED sensor bar like the Wii. Unfortunately only for Xbox and Playstation; no Dreamcast.


Some examples of Sensor Bar lightguns:
http://gear.ign.com/articles/689/689009p1.html
http://www.absoluteanime.com/reviews/rgt-g1/index.htm
http://www.iconic-corp.com/gaming/g1/index.html
http://www.iconic-corp.com/gaming/downloads/IC_G1_INTEng_LR.pdf

EMS Lightgun Manual:
http://www.hkems.com/files/EMS%20TopGun%20II%20Manual%20(eng).pdf



Guncon 3 with sensors attached to weighted belts, designed to lay over the top corners of HD. The end weights counter balance the sensors.


The Wii has lightgun type of games such as Zelda Crossbow Trainer that use the Wii controllers like a lightgun. The Wii sensor bar is just some LED lights that the controller reads and calculating direction. The sensor bar method is a direct read to the lightgun or Wii controller not the TV screen. You can actually mount the Sensor (LED) Bar on the wall and even use a video projector. HD and LCD's pretty much killed the light gun. The Wii with the Motion Sensors at least light gun game play can still be alive, or House of the Dead.



The Wii Komodo Buckshot, wrap your paws around this shotgun!

http://www.amazon.com/Buckshot-Integrated-Analog-Controller-Nintendo-Wii/dp/B002OO8PES


Racketboy article, Wii remote mod with Panzer Dragoon on a PC.
http://www.racketboy.com/retro/2007/04/play-panzer-dragoon-wii-wimote-remote.html



VGA to HD CRT
Dreamcast VGA box to VGA HDMI Converter box to HDMI input on HD CRT TV
This has been tested on a Sony CRT 34XBR960 and did not work for light guns.
Maybe other HD CRT TVs might work?

Link for a VGA to HDMI converter box:
Reviewed by Jamisonia on page 9
http://www.monoprice.com/products/product.asp?c_id=101&cp_id=10114&cs_id=1011404&p_id=4629&seq=1&format=2


Dreamcast VGA box to VGA Component Transcoder (expensive) to Component input on HD CRT TV. Video signal all stays at analog.

Link for a VGA to ComponentTranscoder:
http://www.digitalconnection.com/faq/hdtv_4.asp
http://www.cs1.net/img/audio_authority/pc-tv_article.pdf

Image . Image


Link for a RGB to Component Transcoder
http://www.jrok.com/hardware/RGB.html



Retro Consoles to VGA Monitor
Direct cables do not work, transcoder is needed to convert the signal.
These direct cables are only for TV out ready PC video cards.

Keep in mind when converting the video signal through a transcoder, a reduced non centered image may result. Adjustment of transcoder box and HDTV zoom features may be able to compensate. Also when stretching a native 4:3 image to the standard 16:9 widescreen monitor or HD may result in distortion of the image.

Niode wrote:
SCART and VGA whilst both being analogue RGB signals aren't compatible with each other for the simple reason that the clocks don't match. You'll need a upscanner/converter to convert that signal to VGA. You can get them pretty cheap but don't expect the quality to improve (in fact it will probably look worse).

Upscalers to go from your console to a VGA monitor.
http://www.startech.com/item/COMP2VGA-Video-Game-Jockey-Play-Console-Video-Games-on-your-Computer-Monitor.aspx
http://www.amazon.com/StarTech-COMP2VGA-Console-Monitor-Converter/dp/B00006B8EI


http://www.amazon.com/Component-Ypbpr-VGA-Audio-Converter/dp/B0014BL9PO/ref=cm_cr_pr_pb_t


Finally the best to convert just about any video
http://www.goldenshop.com.hk/AI-trad/Misc_htm/m_xrgb3.htm
http://www.ncsxshop.com/cgi-bin/shop/XRGB-3.html

Racketboy XRGB3 thread:
http://www.racketboy.com/forum/viewtopic.php?f=17&t=13141

Read this review from one owner.
http://www.flickr.com/photos/artemiourbina/sets/72157618847413089/



A well rounded review of various scalers:
http://retrogaming.hazard-city.de/


Trivia and History on Arcade Machines:

Older Arcade Jamma machines did use raster scan lines on games such as Galaxian due to limitations of non-HD CRT monitor. It actually produced a better image by seeming to have more pixels. The Jamma connector are a type of RGB using Video green, Video red, Video sync and Video blue spitting up the video signal offering a cleaner image. Arcade cabinets which have CRT's sometimes went out of focus after many years of use. The out of focus images tended to smooth out the pixels from a monitor screen of only were 256 x 224 resolution.

Personally I'll take the rough with all the blocky pixels showing sharp imagery over a blurry pic any day.

Early arcade machines were raster scan CRT's drawing screen row by row. Vector Graphics arcade machines like Asteroids relied on point by point line draws offering higher resolution and faster screen response time.


The very first Pong game used RF on a TV for a game screen at Andy Capps.
A sign that Video games were here to stay was that the machine jammed from an over-filled coin box.

Arcade Golden Age
I first was exposed to video Arcades when that first interactive CRT appeared. Seen Pong and Spacewars when they first come out at the local bowling alley. Both unique but it was that huge Spacewars cab that blew me away. The idea of programming your game with gravity and ship speed at the start of the game. Geeze couldn't do that with the pinball game. couple years later, when the color Arcades, especially Williams literally quarter snatchers arrived, I was truly in gaming heaven. Defender and Robotron made me react and also think on the fly. Woa, those Stargate controls! To change direction having to hit that reverse button, all while the swarmers closing in! The movie Last Star Fighter touched on this, the wow factor of an Arcade discovered, so true of Arcades gone by. With all the exposure to home gaming now, its not quite the same surprise to see the next newest game. In fact I think the only thing keeping a struggling arcade alive is being located in the mall. A shame, seems to be a ghost town in there.

Home Console Golden Age
I can also somewhat relate to what a newer younger gamer may think of the 8-bit consoles. The NES and Master consoles were skipped over by me when I got into the Commodore Vic-20 and C-64. Because of my allegiance to Atari I did get a 5200 spent a lot of time on Defender, and Centipede. Defender a reminiscent of Arcade exposure right in my room. But a lot of gaming was spent on the Commodore. Just recently I have acquired a NES due to buying R.O.B. a couple months prior. Threw in Super Mario and since I have played this with emulation with a better pic, it just didn't draw me in with the blurry composite connection.

So in addition to current Gen graphics and HD exposure, maybe also emulation damaging the Golden Game Age?

The New Golden Age
Another thought, the Atari 5200 brought my favorite Arcades home with Defender, Robotron and Centipede at near perfect renditions. A few years later I got hooked on Space Harrier, but was let down by the home editions until Mame and eventually PS2 versions came along. The Arcade now looking like a guarantee exact copy to be available in your home console. Now Arcades have a hard go trying to compete with current gens, no more wow factor. I think the over saturation of gaming today kinda kills that same wow factor at home too.

So will we hit a slump like the Atari 2600 crash of yesteryear?

8 Bit Computer as a Game Console
Earlier computers support Composite and SVideo and most have a game cart capability. This is an untapped source of potential game consoles for the big screen. These include Commodore 65, Vic20, TRS80, TI-99/4A, Timex Sinclair, Atari 400/800 and even the Apple II computers

The Commodore 64 SVideo connection are separate chroma and luma RCA video cables on the back of 1702/1902 monitors. We are talking about an old 6502 chip - clock speed of about 1 MHz and screen pixel 320×200 or 160×200 if in multi color. Even in that low a resolution anytime you can split the video signals the end result is better quality video. The rear connections were only for Commodore Computers. Older Commodore computers have a five Din connector. Most have an eight pin din including the 128ds, the newest and last of the "C64" line. Two video inputs for Chroma and Luma signals and one audio for the mono connector. Front inputs are for regular composite video and mono audio. Those rear Commodore SVideo Chroma-Luma RCAs are so much more robust then the crappy industry standard SVideo plug.


By the way using a second smaller monitor such as the C64 monitor is great for all those Link games with two game consoles needing two separate screens. Composite for the front or a custom SVideo cable for the rear.

SVideo to two RCAs for Chroma-Luma of a Commodore 1701-1702 monitor. You can also go the other way and use a regular SVideo input TV.
http://www.cablesdirect.com/search_avcable.asp

Make your own custom C64 to SVideo cable. Don't forget a separate audio cable.
Quote:
http://radagast.bglug.ca/C64_svideo/C64_Svideo.html


So the objective is to create a patch cable that goes something like this:

C64 Pin to SVideo Pin
2 ................. 1
2 ................. 2
4 or 6 ......... 3
1 ................. 4

A Commodore 1541 drive singing daisy, crank up the volume. :shock:

Image 1541 Floppy Drive Singing Daisy

List of PSX link games, Assault Rigs!
http://en.wikipedia.org/wiki/PlayStation_Link_Cable


For a great video input comparison:
http://www.lyberty.com/encyc/articles/svideo.html
http://www.freewebs.com/brandonshometheaterzone/cablesandwires.htm



Finally purchased a Nintendo brand Gamecube Component cable which brought games up to 480p. Is the Gamecube component cable worth the money? If you want the best than yes! Overall very sharp image, and at 480p you can see every level of detail the game programmer put in.

You can also mod that expensive Gamecube cable to work on a VGA monitor.
http://www.geocities.co.jp/Technopolis-Mars/9984/ngcrgb_e.htm

Or buy one.
http://www.goldenshop.com.hk/AI-trad/gc/vgacable.htm


A cheaper VGA option for the Gamecube is the Innovation VGA Box. VGA conversion comes from the SVideo pins in the Nintendo console Analog port. Note, not the Digital port, so any model Gamecube will work. Unfortunately no 480p conversion, but the image does fill your computer monitor screen. A slightly dim 640x480 image, actually not bad for a SVideo source. SNES and N64 has the same video port so these consoles are also compatible with the VGA Box. There are universal VGA adaptors that accept SVideo cables, but this is easiest the most robust, with the direct SNES video cable connection. Keep in mind some LCD HD or LCD computer monitors may not support 640x480. An adequate pic to take a gaming break from the computer.

Easiest the best economical way to pull the highest SNES and N64 signal available to the computer monitor. Now you can play that drunken Conker squirrel on your monitor!


http://cgi.ebay.com/NEW-Gamecube-SNES-N ... 0444146759?
http://www.amazon.com/INNOVATION-TECHNO ... B0001YM06W

Spare VGA and Audio cables are included in the box.


A second VGA and audio source can to be plugged in. This works great as a select switch box for adding a Dreamcast and its own separate VGA/Audio Box. Both consoles share the same monitor and speakers. The Dreamcast signal is unaffected by the Innovation box, just a VGA pass thru of the Dreamcast own VGA conversion box. The SOURCE Button does not work, only changes the LED lights. I think its supposed to be part of an auto sensor function, perhaps as in a laptop hookup of a higher resolution. A workaround is sliding the ON-OFF button to change between the two VGA/Audio signals. There is also a separate SVideo/Composite/Audio SNES-N64-GC output port for hooking up to a regular TV.


Too Many Consoles
If your HD TV doesn't have enough inputs simply run extra Video switch boxes.

1st box - Composite and SVideo
2nd box - Component
3rd box - HDMI


Pelican-Gamestop video switch box.
http://www.amazon.com/GameStop-Universal-System-Selector-GameCube/dp/B0006V5L8E
http://www.amazon.com/Xbox-360-playstation-gamecube-nintendo-wii/dp/B0006TIA7K

Another System Video Selector box by Pelican, matches the Fat PS2.
Composite, S-Video and a powered RF modulator for coaxial only TVs

Has label tabs for:
DREAMCAST
GAME CUBE
N64
OTHER
PLAYSTATION
PLAYSTATION 2
X BOX

http://www.amazon.com/dp/B0002CFEI4/?tag=/102-9221713-9731369mbookshop

Retro Mono Console and the Stereo TV
Just split the audio with a Y-Adaptor. Depending which end, match up the male and female connectors. A good idea to keep all the RCA jacks covered to cut down on the audio buzz feedback.


In a reverse situation, if you have a Mono TV then you will be missing some sounds if you don't set the game to mono. A pain to configure each game. You could just leave settings to default stereo. Hookup both the audio cables with the same Y-Adaptor to your mono TV.

All Video switch boxes mounted under the coffee table with plumbers metal strap tape. Out of the way and still easy to reach.


CRTGAMER wrote:
Multiple Switchboxes

If I had just one huge switchbox tying in all the inputs I would have to hit BOTH the TV remote input and the switchbox select input everytime I wanted to watch a DVD, Cable TV, CED, Laser Disc, VCR, Component Console, SVideo Console, Composite Console or the Atari RF output. With the multiple switch boxes I simply use the TV Remote input. I only have to select the switchbox if I have a different mood on a particular console that has a different type of output. For example I can play Gamecube Component or N64 SVideo simply by hitting the TV Remote input. The switchboxes are only used if I need to select a different console that utilizes its own specialty output such as SVideo. 8)


In testing all the various video input options, results the worst to the best:

Resolution limited to 480i and below
RF - Don't bother unless you play games with eyes closed.
Composite - lot of color bleeding and blur.
S-Video - clean images.

Resolution can go 480p up to 1080P
Component and RGB - Analog Image resolution better then 480i
DVI and HDMI - Best image being all digital

VGA - Unique to Dreamcast Analog 640x480 Similar to 480p


VGA switch box, handy for CRTs or LCD monitors that have only one input.
http://www.frys.com/category/Outpost/PC ... l+Switches
http://www.allaboutadapters.com/2vgamasw.html

Instead of a second PC, hookup a Dreamcast. :mrgreen:

KVM switches are another option, but auto only ones require shutting off the PC.


A quick note when using a HDMI switch box. If you have an older HDTV such as mine, there is only a DVI input for video. Separate RCA audio inputs.

Get a DVI to HDMI cable.


I acquired an older non-powered two switch HDMI unit with ⅛ phono stereo jacks from Frys. Adaptor works fine in combination with RCA to ⅛ phono stereo jacks to the HDMI switchbox.

A point to consider is the separate audio leads for DVI adaptor needs to be included in the switch box.

For clarity of type connections, Pic shows a box that has a separate DVI input.

There is also HDMI splitters. Connecting two HD TVs to one HDMI source.
http://www.monoprice.com/products/product.asp?c_id=101&cp_id=10113&cs_id=1011301&p_id=4921&seq=1&Image
Looks like a fixed resolution that both HDTVs can support though. For instance if one HD can only do 720p then that newer 1080p is stuck at 720p thru the splitter.
Customer Feedback wrote:
I purchased this item to split my PS3 signal into 2 tvs. I forgot my bedroom lcd only would push 1080i so when I was pumping my 1080p signal into the tv it was confused and wouldn't display video. This is my fault not the device. Monoprice was very kind to return the item with no questions asked. Monorpice for life!
Confirmation it works, thanks to nate's thread
nate wrote:
hey, got the little box today. worked great with my PS3, played a short vid that was on my PSP and played the Shift demo a bit and both TV's looked great. Both are 1080p Sharp aquos. just about the same tv's but for the screen size. I think we have a winner here. :D

Man I don't know why I waited so long to pursue this. I miss dual displays for my DVDs

--------------------------------------------------------

Mini Guides

--------------------------------------------------------

Image Image

Anamorphic Screen Fill vs Zooming the Pic

Whenever possible, buy your DVD movie in the Anamorphic version. The Anamorphic movie uses all the screen's real estate. Even on a 4:3 HD or regular TV the Anamorphic widescreen image squeezes and fills up the entire screen. Just set your DVD Player to Widescreen mode, and enjoy the highest resolution of the DVD movie. Note that no zoom is used for the best resolution.

Non-Anamorphic downgrades the video capabilities of a DVD. On a 4:3 screen, large black bars are on the top and bottom. Even worse on a widescreen TV you still have black bars on the top and bottom and sometimes the sides. :roll: You can zoom in the image with your DVD player or HD controls, but at the cost of losing the resolution.

A marketing push to customers of Plasmas, LEDs and LCDs into buying the BluRay version? :x

http://www.thedigitalbits.com/articles/anamorphic/
http://www.dvdbeaver.com/film/misc/anamorphic_dvd.htm
http://en.wikipedia.org/wiki/Anamorphic_widescreen
http://en.wikipedia.org/wiki/Anamorphic_format

Not all the film frame is utilized when shooting a wide screen Non-Anamorphic exposure. A loss of image resolution. Anamorphic filming uses a special lense in the camera to squeeze the image and utilize all of the film surface. The movie is then played back with a widescreen lens. More video information is in the original film, resulting in a sharper picture.


Film Frame of Non-Anamorphic vs Anamorphic
Image Image

4:3 Screen on top Wide Screen on Bottom Non Anamorphic vs Anamorphic
Attachment:
Anamorphic Images.JPG
Anamorphic Images.JPG [ 115.03 KiB | Viewed 84348 times ]

When buying a DVD, watch for various widescreen logos and never buy a Full Screen version of a movie. Pan and Scan will cut off part of the images on the sides.
CRTGAMER wrote:
Just because a movie is listed as widescreen does not mean Anamorphic. Less video information resulting in larger black bars then an Anamorphic movie. The biggest headache is there is no standard logo identifying if a DVD has the better Anamorphic coding or not.


http://en.wikipedia.org/wiki/Aspect_ratio_(image)

Image Image Image Image Image

I noticed a problem in the wallpaper and games of the my relative's widescreen computer monitor. A lot of games and pics are 4:3 so they default to showing on the screen at 4:3 with bars on either side. The games can be stretched, but look distorted and jump back to 4:3 after resetting back to regular screen during a reboot.

I think with the exception of movies we are still in the transition stage for games and pics. Console games have a widescreen option but most computer related programs, games and digital cameras have not fully adopted the wide screen format. What a pain, this reemphasizes why I'm sticking with 4:3 screens for all my systems.

Why would I want to make the family fatter when viewing pics? :lol:


HDDefForum wrote:
http://www.highdefforum.com/flat-panel-tvs/4579-fyi-wide-screen-dimensions.html

Screen Dimensions for 16:9 Aspect Ratio Wide-Screen Tv:

26" = 12.7 (H) x 22.7 (W)..........288.3 (sq.in.)
27" = 13.2 (H) x 23.5 (W)..........310.2 (sq.in.)
30" = 14.7 (H) x 26.1 (W)..........383.7 (sq.in.)
32" = 15.7 (H) x 27.9 (W)..........438.0 (sq.in.)
34" = 16.7 (H) x 29.6 (W)..........494.3 (sq.in.)
37" = 18.1 (H) x 32.2 (W)..........582.8 (sq.in.)
40" = 19.6 (H) x 34.9 (W)..........684.0 (sq.in.)
42" = 20.6 (H) x 36.6 (W).........754.0 (sq.in.)
43" = 21.1 (H) x 37.5 (W)..........791.2 (sq.in.)
44" = 21.6 (H) x 38.3 (W)..........827.3 (sq.in.)
45" = 22.1 (H) x 39.2 (W)..........866.3 (sq.in.)
46" = 22.6 (H) x 40.1 (W)..........906.3 (sq.in.)
47" = 23.0 (H) x 41.0 (W)..........943.0 (sq.in.)
50" = 24.5 (H) x 43.6 (W)..........1068.2 (sq.in.)
51" = 25.0 (H) x 44.5 (W)..........1112.5 (sq.in.)
52" = 25.5 (H) x 45.3 (W)..........1155.1 (sq.in.)
53" = 26.0 (H) x 46.2 (W)..........1201.2 (sq.in.)
55" = 27.0 (H) x 47.9 (W)..........1293.3 (sq.in.)
56" = 27.5 (H) x 48.8 (W)..........1342.0 (sq.in.)
57" = 27.9 (H) x 49.7 (W)..........1386.6 (sq.in.)
60" = 29.4 (H) x 52.3 (W)..........1537.6 (sq.in.)
61" = 29.9 (H) x 53.2 (W)..........1590.7 (sq.in.)
62" = 30.4 (H) x 54.0 (W)..........1641.6 (sq.in.)
65" = 31.9 (H) x 56.7 (W)..........1808.7 (sq.in.)
70" = 34.3 (H) x 61.0 (W)..........2092.3 (sq.in.)

For a Standard 4:3 screen:
Width = Diagonal X 0.8
Height = Diagonal X 0.6
SO, a 32 inch 4:3 screen is 25.6 inches wide and 19.2 tall.

For a 16:9 Widescreen:
Width = Diagonal X 0.87157552765421
Height = Diagonal X 0.490261259680549
SO, a 43 inch 16:9 screen is 36.6 inches wide and 20.6 inches tall.


Compare Television Sets
http://www.cavecreations.com/tv2.cgi


--------------------------------------------------------

Game Storage and Cart End Labels


Pull from Google Images or scan the front label of your Game Cart. To make an end label, Crop and Resize to fit with any photo touchup or label application. You can get special label paper or print on regular paper. Use double sided tape for the bottom and Transparent Glossy (not magic) tape for the top as a laminate. Both tapes are placed oversized on the printed label, then everything is cut to size at once for a clean look before sticking.


As far as organizing I just have shelves behind me of Alphabetized CD / DVD cases. For the Game Carts I built custom wood shelves that are cut to size matching the width and height of my N64 carts stored contacts down. Keeps the dust out of the contacts and I don't have to hold eight carts to pull one. There is enough air space above each cart for my finger or a taller Game Shark cart to fit. Five shelves tall. Laminated Wood flooring makes great space saving lightweight thin shelving material. I used a finish nailer for a quick and clean fit. Shelves are held together with ¾" slats. Each shelf layer is also independent of each other, makes for easy swapping around or moves if need be. More shelves can also be easily added as the library grows. Gameboy carts a real pain, A Gamestop or Golfball display case seems the best way.

Attachment:
N64 Cart Wood Flooring Shelf Small.jpg
N64 Cart Wood Flooring Shelf Small.jpg [ 201.07 KiB | Viewed 85830 times ]


--------------------------------------------------------

Multiple systems and cheap media player for the big screen.
A little different aspect here. An easy way to get multiple operating systems in your PC. An internal removable boot drive bay. IDE the common standard with less bugs for older operating systems.


A dedicated boot C drive each for DOS, WIN98, Linux and WINXP systems. An internal D drive can be the shared media and docs drive. Limitation of drive sizes for the older operating systems. The swappable drive route comes in handy for me, I also have a USB external bay, takes the same drive enclosure trays. External can be plugged in for another way to swap files between the different systems. As a bonus, external hard drive bay can be plugged in a USB port of the DVD player.
Acts as a 200gb memory stick to view JPGs and MPGs on the HDTV. :mrgreen:

--------------------------------------------------------

Battery Info - Chargeable or Alkaline

Keep in mind the basic principal how a battery works. It is a transfer of electrons from cathode plate to anode plate. As the corrosion process on the plates progresses, over time the battery has less internal active surface area of Cathode to Anode. Over a period of time you run into diminishing returns on run time and drain-recharge cycles.


There are other considerations in addition to cost of rechargeable batteries. The higher the MAH rating, say a 2700 battery, the longer the run time but less cycles of recharges before battery wears out. A lower 2200 MAH rated battery will have less run time but more drain-recharge cycles can be accomplished.


Blade Runner Movie wrote:
"The light that burns twice as bright lasts half as long".
Capacitors built like a "Surge" battery. A temporary storage cell.


So box of alkalines vs tray of rechargebles at 750 recharges before dying? You do save money overall by going rechargeable negated by additional slight cost of the electric bill. But for the longest one time cycle, an alkaline will have the longest run time.

--------------------------------------------------------

Capacitor Check

I see a lot of suggestions of repairing consoles by changing the capacitors. Usually the last thing that can go bad. Contacts on cables and carts as well as dirty discs and laser eyes should be looked at first. But if you do want to verify a capacitor, you can use an OHM meter. The capacitor will have to be discharged and desoldered from the PCB first. If a capacitor is bad be sure the replacement is the same. Not by appearance but internal surge and holding power ratings.
Quote:
http://www.applianceaid.com/micro4.html

With wires off of the capacitor ( write down where they go first! )...touch the cap terminals ( red lead on left and black lead on right )...the needle should move away from the infinity ( probably left side ) and move slightly ( towards the right side ) and go back to infinity...reverse leads and ( red lead on right side and black lead on the left side ) on the cap and the needle should move away from infinity even further and then go back to infinity = a good cap. ( note - some caps have a built in resistor that you may read ) ( refresh page will start the animate picture again)


If the meter needle goes all the way over to the right side and stays there = a shorted capacitor. ( refresh page will start the animate picture again)



--------------------------------------------------------

Posting of Pics Rant

As a courtesy you want to keep the pic smaller then the normal width of the reply screen size. Large pics stretch the text box out, a pain to read. I keep JPGs at 700 wide or less.

If you have OSX, use iPhoto. Import then export as JPG and set the width at 700 or less.

For PC there is Infraview, a great freeware pic utility.
http://www.irfanview.com/

Other option a pic sharing site, a mixed blessing at times.

A photo sharing site is a great way to stage your Photo.
Crappy when you get the error and can't retrieve your photo.

--------------------------------------------------------

Capturing YouTube Video


If you're using Safari, there's an easy way to download YouTube videos. Open the page with the movie and press Command-Option-A, which shows the Activity window. If you're also loading other sites, you'll see a list of them: scroll until you find the YouTube page and click on the arrow to show details about what is being loaded.

You will certainly notice an element whose size is over 0.5MB (most of the time, over 5MB). Double-click on it (even if it is still loading), and Safari will download it. When the download is over, navigate to the file in the Finder (which will probably be called get_video) and add the extension .flv to its name. Now you can play it with VLC or with QuickTime (only if you have Perian installed).

For the PC you can use a URL downloading site.
http://keepvid.com/
http://deturl.com/

Or just add pwn to the front of the URL: "http://pwnyoutubeyoutube.com/"


--------------------------------------------------------

Converting Files

Image Image Image Image


Okay do this if you have a MAC Computer:
You can convert select single pages out of PDF's to JPG using Mac Preview. Just highlight a page and save as a JPG. You can also convert Word Doc files to HTML's using Mac Word by saving as Web Page.

Creating a PDF with multiple JPGS

OSX Leopard 10.5 and newer.
To join two or more PDF files together using Preview – the standard pdf viewer in OS X – simply open a PDF in preview, open the thumbnail view, and then drag a second pdf file ON TOP OF an existing thumbnail. The two documents will merge into one. Then save the new combined file. Read on for step-by-step instructions. To merge the two PDF files you need to drag the new PDF on top of an existing thumbnail. If you drag it into the sidebar but not on top of an existing page the new file will be added as an external link – not merged into the original PDF document. You can do the same with JPGs and save as a PDF file.

OSX Tiger 10.4 and older
Use the Combine PDFs program.
Simply drag JPGS and then click the Merge PDFs button on the bottom right.

You can Screen capture with SHIFT COMMAND 4, then drag mouse over area to be captured.

--------------------------------------------------------

I see lot of classic game rooms showing beautiful shelves full of consoles but they are not hooked up. Whats the point in that? Is that a museum with only latest Gen System running? Don't get me wrong, Game Collections I see from other collectors are impressive from many years of research and I truly respect and admire.

But why not take that extra step and mount them all through Power Strips (which can shut power off) and Video Switching Boxes. Cord covers and Zip Ties can easily manage all those cables.

I think I am an OCD gamer nut. Have everything from Atari 5200 to N64 to PS2. My systems hooked up thru 3 separate video switch boxes. Don't ask me to trace all those video inputs again! All consoles on side table and on huge coffee table in front of me. To play Joust, Robotron, Sonic, Tempest X, God of War, Conkers Bad Fur, Spyro, Wario, Black, ICO, Mario Sunshine, House Dead, Pacman VS, Aero Elite or any of the others all I have to do is flip video switch box and PLAY THAT RETRO!

My take on Digital Rental Management
A bad move for the consumer, owners of current gens and Steam. Games you download today won't be supported years from now when site goes away and your system crashes. Same feelings about DLC, additional content that should have been in the original disc purchased game in the first place! Again years later all those addition features will be lost when PS4, Wii3 and XBox720 comes around. As for backwards compatibility down the road? The old reasons to maintain a customer loyalty owning older games no longer applies. Backwards compatibility will only be for older games that can be resold as a download.

Sad thing is DRM downloads are part of culture because of ignorant convenience.

Here's a Dreamcast Checklist, great for verifying collection:
USA PDF FILE
http://www.lunchwithgeorge.com/dc_checklist.pdf
PAL PDF FILE
http://www.segaforums.com/dreamcastmagic/uploads/files/the_dreamcast_eu_checklist.pdf

Dreamcast Owners Manual: http://www.thocp.net/software/games/con ... manual.pdf

Every console from Atari 2600 to NES to Dreamcast to the current Wii - PS3 - 360 all have their own unique great games. SOFTWARE is what makes a great game machine. Find the games you really like then buy the matching console.

With HDAdvance and almost 200 PS2 games, more then enough to keep me busy. Sad thing is I'm still buying PS2 games, especially since complete editions are getting harder to find. I can proudly say that every one of my PS2 games are complete with the original Case (Most have a Memory card holder, newer releases don't), Cover and manual.

I an Avid gamer who has seen first hand how the gaming Industry has grown. From the Pong games when they first hit my bowling alley, consoles from Bally Astrocade and Atari 2600 to C64 to VECTREX (Remember that cool Vector Monitor?) Dreamcast all the way to PS3. I love Video games best when I'm playing them.

MISCELLANEOUS LINKS:

Arcade Controller Mod Guide: Home System Adaption
http://www.racketboy.com/forum/viewtopic.php?p=292282#p292282

Twinstick Guide: Console Arcade Method
http://www.racketboy.com/forum/viewtopic.php?p=290325#p290325

Arcade Spinner Mod: Tempest Inexpensive Method
http://www.racketboy.com/forum/viewtopic.php?p=353752#p353752

Gamecube and PS2 Mod Guide: Alternate Media
http://www.racketboy.com/forum/viewtopic.php?p=322332#p322332

Playstation PAL NTSC Conversion Guide - Playing PAL/NTSC games in another region
http://www.racketboy.com/forum/viewtopic.php?p=388723#p388723

Gameboy Advance Link Games List
http://www.racketboy.com/forum/viewtopic.php?p=391068#p391068

PS3 YLOD - Some possible preventions:
http://www.racketboy.com/forum/viewtopic.php?p=230322#p230322

Rare Dual Analog - Sony's first three mode analog controller:
http://www.racketboy.com/forum/viewtopic.php?p=217621#p217621

Adjusting CRT Potentiometers
viewtopic.php?f=17&p=571621#p571621

Ninja Turtle DVD Player and Namco Plug Play - A rare find
http://www.racketboy.com/forum/viewtopic.php?p=347207#p347207

Space Tanks - Exclusive free game made by me, enjoy!
http://www.racketboy.com/forum/viewtopic.php?p=278767#p278767

Cell Phone and Portable Retro Gaming
http://www.racketboy.com/forum/viewtopic.php?p=209282#p209282

NES R.O.B. A lucky find.
http://www.racketboy.com/forum/viewtopic.php?p=275280#p275280

NES R.O.B Interactive Mod Guide kill the value of your collectible with a Mod.
http://www.racketboy.com/forum/viewtopic.php?p=330494#p330494

PS2 Games Special Editions List Guide - PS2 Games that have Extra Content
http://www.racketboy.com/forum/viewtopic.php?p=398591#p398591

PS2 Case Cracking the Game Disc
http://www.racketboy.com/forum/viewtopic.php?p=327287#p327287

PS2 EdgeFX Mouse FPS Controller
http://www.racketboy.com/forum/viewtopic.php?p=339754#p339754

Polishing Scratched discs an inexpensive easy way:
http://www.racketboy.com/forum/viewtopic.php?p=240393#p240393

Polishing Scratched Discs - Removing Price Stickers Guide
http://www.racketboy.com/forum/viewtopic.php?p=398336#p398336

Arcade Cabs: Prototype and Urban Legends Released
http://www.racketboy.com/forum/viewtopic.php?p=296545#p296545

Favorite Arcade Cabinets
http://www.racketboy.com/forum/viewtopic.php?p=207616#p207616

Space Wars 1978 to Star Trek 2006 Game Reviews Arcade to Consoles to PCs.
http://www.racketboy.com/forum/viewtopic.php?f=32&t=28826&p=384252#p384252

Wild Metal (Country) Dreamcast and PC exclusive.
http://www.racketboy.com/forum/viewtopic.php?p=304356#p304356

Toy Commander Dreamcast only release.
http://www.racketboy.com/forum/viewtopic.php?p=307530#p307530

Katamari Series Review and a comparison.
http://www.racketboy.com/forum/viewtopic.php?f=32&t=25806&p=326982#p326982

Mighty Beanz Pocket Puzzles - GBA review
http://www.racketboy.com/forum/viewtopic.php?p=390765#p390765

Atari 7800 Jinks Review
http://www.racketboy.com/forum/viewtopic.php?p=349279#p349279

Dance Dance Revolution Guide
http://www.racketboy.com/forum/viewtopic.php?p=338479#p338479

Gadget Review PC and Mac computer game.
http://www.racketboy.com/forum/viewtopic.php?f=47&t=10186&p=337680#p337680

Dr Strangelove One of my favorite movies, a review.
http://www.racketboy.com/forum/viewtopic.php?p=317705#p317705

Sergio Leone Big Three Westerns My favorite gunslinger movies.
http://www.racketboy.com/forum/viewtopic.php?f=15&t=26165&p=333287#p333287

Winged Migration A beautiful documentary set to Bavarian music.
http://www.racketboy.com/forum/viewtopic.php?p=382438#p382438

The Goonies and Quake Bonus DVD Classic 80s Flick and Exclusive Doom DVD
http://www.racketboy.com/forum/viewtopic.php?f=15&t=7221&p=479082#p479082

Lord of War A very cool YouTube clip
http://www.racketboy.com/forum/viewtopic.php?p=370649#p370649

Freeware FPS Acid Arena for the PC and Mac
http://www.racketboy.com/forum/viewtopic.php?p=382346#p382346

Game Discs with music that play on a regular CD Player
http://www.racketboy.com/forum/viewtopic.php?f=44&t=29304&p=393982#p393982

Game magazines, what is your favorite? Free download of PDFs.
http://www.racketboy.com/forum/viewtopic.php?p=280787#p280787

History of Copy Protection and the DRM Future of Gaming
http://www.racketboy.com/forum/viewtopic.php?p=313544#p313544

My 1962 Impala
http://www.racketboy.com/forum/viewtopic.php?p=279463#p279463

A Game Collector's Rant - My four crazed return trips back to Gamestop.
http://www.racketboy.com/forum/viewtopic.php?f=47&t=10186&p=395954#p395954

Another Game Collectors Rant - Discovering a rare game.
http://www.racketboy.com/forum/viewtopic.php?f=47&t=10186&p=400271#p400271

Drove over 100 miles - For an obscure game.
http://www.racketboy.com/forum/viewtopic.php?f=47&p=418991#p418991

Game shipped in 85% off GBA games - I went nuts on this.
http://www.racketboy.com/forum/viewtopic.php?f=47&p=598089#p598089

My Buy 2 Get 2 Free Finds - First page of over 50 games discovered.
http://www.racketboy.com/forum/viewtopic.php?p=409722#p409716

THE GOOD, THE BAD AND THE UGLY - Wall of Rant - Oh drink the Coffee and read it.
http://www.racketboy.com/forum/viewtopic.php?f=44&t=18083&p=526960#p526960

My favorite Retro Store
Click the pic for the site:

I love Bookoff! This Japanese owned franchise sells used games in pristine condition, complete with original cases, covers and manuals. All the games and DVD movies are protected by a clear easy to open plastic envelope, the small easy to remove price tag is on the envelope.

CRTGAMER wrote:
"The Internet is a great resource. Treat it as an Information Highway of an educated guess. Don't trust your Heart operation to it."
[/quote][/quote]
Consoles owned can-you-say-I'm-slightly-Game-OCD:
APF MP1000, Atari 5200 Centipede with Trakball!, Atari 7800, GCE Vectrex own-3-can-you-believe-$20-at-swap-meet!, N64 Yes CONKER BAD FUR!, PS1, Dreamcast, Gameboy Advance, Gamecube with Gameboy Player Wario Ware very cool on big screen, PS2, PSP, PS3 and Wii.

Computers owned don't laugh:
Apple II+, Vic-20, Texas Instruments TI-99/4A, Timex Sinclair, C64, SX64 trans-portable gaming computer with 2 inch color CRT computer monitor, C-128D, iMac G3, and Athlon PC, Apple and Sony laptops.

Video machines owned now I'm nuts:
VHS, Hi8, RCA CED Player video player with a huh? needle, Pioneer Laserdisc with DRAGONS LAIR Original arcade disc, Several DVD players. The VHS, Laser and Phillips DVD player have the why-did-this-go-away-on-newer-machines beloved Jog Shuttle Dials.

Original owner of these systems: viewtopic.php?p=284901#p284901

_________________
.
CRT vs LCD HD, Lightguns and More Guides : Gamecube SD Card-PS2 Fat Hard Drive
Fumito Ueda TEAM ICO : PS3 YLOD : Playstation Controller xo∆ FAQ-DUAL ANALOG



Last edited by CRTGAMER on Thu May 15, 2014 9:27 pm, edited 486 times in total.

Top

 Post subject: Re: LCD vs CRT, Best Video Inputs and Lightguns on HD
PostPosted: Sun Jan 10, 2010 10:14 pm
Offline
Next-Gen
User avatar
 Profile

Joined: Sat Sep 12, 2009 3:02 pm
Posts: 2340
Location: Michigan
Dude, this was an AWESOME read! Seriously interesting stuff you've written here.

_________________


Top

 Post subject: Re: LCD vs CRT, Best Video Inputs and Lightguns on HD
PostPosted: Sun Jan 10, 2010 10:30 pm
Offline
Former Moderator
User avatar
 YIM  Profile

Joined: Fri Feb 29, 2008 11:05 pm
Posts: 6844
Location: Statesville, North Carolina
Pretty good, though you mean Composite on the first one instead of component.

_________________
My Consoles:
Genesis - Nomad - SegaCD - GameGear - Sega Saturn - Dreamcast - NES - SNES - N64 - Gamecube - Wii - Playstation - PSone & LCD - PS2 - PS3 - Xbox - 3DS

Niode wrote:
Send him a dodgy cheque. Make it out to Scammy McScammerson.


Check out my sale thread below, NeoGeo MVS carts & Arcade gear wanted!:
viewtopic.php?f=22&t=11366


Top

 Post subject: Re: LCD vs CRT, Best Video Inputs and Lightguns on HD
PostPosted: Sun Jan 10, 2010 10:52 pm
Offline
Next-Gen
User avatar
 Profile

Joined: Tue Jan 05, 2010 10:59 am
Posts: 10176
Location: Southern California
Mod_Man_Extreme wrote:
Pretty good, though you mean Composite on the first one instead of component.


Oops thanks for catching that, re-edited Gamecube video comparison now shows Composite.

_________________
.
CRT vs LCD HD, Lightguns and More Guides : Gamecube SD Card-PS2 Fat Hard Drive
Fumito Ueda TEAM ICO : PS3 YLOD : Playstation Controller xo∆ FAQ-DUAL ANALOG



Top

 Post subject: Re: LCD vs CRT, Best Video Inputs and Lightguns on HD
PostPosted: Mon Jan 11, 2010 2:22 am
Offline
Next-Gen
User avatar
 WWW  YIM  Profile

Joined: Thu Apr 24, 2008 6:13 pm
Posts: 4491
Location: Silicon Valley, CA
Great read!! 8)

_________________
Odyssey,Vectrex,Atari 2600,5200,7800,Intellivision,Colecovision,NES,Master System,SNES,Genesis,32X,CD,CDX,Virtual Boy,TG-16,Neo-Geo AES,Jaguar+CD,PSX,PSOne,Saturn,3DO,N64,DC,PS2,Xbox,GCN,Wii,Xbox 360,PS3,GB,GB Pocket,GBC,Lynx,Game Gear,Nomad,NGPC,GBA,GBA SP,GB Micro,DS,PSP,PSP Slim,WS,WS Color,3DS,Vita,PC,iPhone,WiiU
A/V:55" Samsung 3D LED TV, Onkyo 7.1 TX-SR605 HTS
My gaming collection


Top

 Post subject: Re: LCD vs CRT, Best Video Inputs and Lightguns on HD
PostPosted: Wed Jan 13, 2010 10:17 pm
Offline
Next-Gen
User avatar
 Profile

Joined: Wed Jul 19, 2006 6:54 pm
Posts: 1078
Location: Panama
Great post man! Just another confirmation if I ever see a second hand HD Sony Wega CRT for sale.

_________________
Consoles: NES, Famicom, SNES, GC, GB Pocket, GBC, GBA, N64, VBoy, NDS, Wii, SMS, GEN+CD+32X, GG, SAT, DC, WS, WS Color, NGPC, XBOX, 360, PS1, PSone, PS2, PSP, PS3, 3DO, CD-I, NGCD, Actionmax, TG16+CD, TE, PCE-DUO, Odyssey2, Playdia, 2600, Lynx & JAG.


Top

 Post subject: Re: LCD vs CRT, Best Video Inputs and Lightguns on HD
PostPosted: Sat Jan 16, 2010 6:26 am
Offline
128-bit
User avatar
 WWW  Profile

Joined: Sun Oct 05, 2008 12:20 am
Posts: 909
Location: Brisbane, Queensland, Australia
CRTGAMER wrote:
:?: Now the big question:
Has anyone have any luck with Dreamcast VGA box - VGA transcoder to Component - Regular Dreamcast Lightgun - HD CRT?

The regular Dreamcast light gun is built for a 15KHz signal (standard PAL/NTSC signals).

The VGA box generates a 31KHz signal, which is not compatible with the SEGA made lightgun. And AFAIK, nobody else has made a CRT-tracing style lightgun for Dreamcast that can handle 31KHz either.

So no, you won't be playing lightgun games on CRT HD TVs nor CRT (S)VGA monitors with the Dreamcast VGA box. 15KHz (low def) CRT TVs and monitors only.

For the record, I've also hacked Dreamcasts, PS1s and PS2s into 15KHz arcade RGB monitors via RGB/SCART outputs, and they've worked fine with CRT-tracing light guns.

_________________
My Game Room | StickFreaks | Child's Play Charity


Top

 Post subject: Re: LCD vs CRT, Best Video Inputs and Lightguns on HD
PostPosted: Sat Jan 16, 2010 12:26 pm
Offline
Next-Gen
User avatar
 Profile

Joined: Tue Jan 05, 2010 10:59 am
Posts: 10176
Location: Southern California
elvis wrote:
CRTGAMER wrote:
:?: Now the big question:
Has anyone have any luck with Dreamcast VGA box - VGA transcoder to Component - Regular Dreamcast Lightgun - HD CRT?

The regular Dreamcast light gun is built for a 15KHz signal (standard PAL/NTSC signals).

The VGA box generates a 31KHz signal, which is not compatible with the SEGA made lightgun. And AFAIK, nobody else has made a CRT-tracing style lightgun for Dreamcast that can handle 31KHz either.

So no, you won't be playing lightgun games on CRT HD TVs nor CRT (S)VGA monitors with the Dreamcast VGA box. 15KHz (low def) CRT TVs and monitors only.

For the record, I've also hacked Dreamcasts, PS1s and PS2s into 15KHz arcade RGB monitors via RGB/SCART outputs, and they've worked fine with CRT-tracing light guns.

What you wrote does make a lot of sense.
Have you tried the dreamcast lightgun yourself on a VGA CRT?

I keep hearing mixed information from different sites if it works or not. I do know the VGA box grounds a couple pins internally telling dreamcast output to 640x480 mode. Also CRT VGA can be set at different refresh rates. Maybe thats the key to make the lightgun work on VGA CRT moniter?

Here's some links:
http://www.ex.org/4.4/45-game_houseofthedead2.html
http://www.gamefaqs.com/console/dreamca ... 16412/2674
http://forums.xbox-scene.com/index.php? ... opic=93082

"The Internet is a great resource. Treat it as an Information Highway of an educated guess. Don't trust your Heart operation to it."

_________________
.
CRT vs LCD HD, Lightguns and More Guides : Gamecube SD Card-PS2 Fat Hard Drive
Fumito Ueda TEAM ICO : PS3 YLOD : Playstation Controller xo∆ FAQ-DUAL ANALOG



Top

 Post subject: Re: LCD vs CRT, Best Video Inputs and Lightguns on HD
PostPosted: Sat Jan 16, 2010 6:01 pm
Offline
Former Moderator
User avatar
 YIM  Profile

Joined: Fri Feb 29, 2008 11:05 pm
Posts: 6844
Location: Statesville, North Carolina
Oh, I almost forgot to mention, the Guncon 2 actually has a 100Hz mode.

To quote the internet:

The Internet wrote:
For 100Hz TV's, when on the Calibration screen. Point the GUNCON2 away from the screen. Hold trigger and press the SELECT button (it's on the Left hand side of the gun, nearest the muzzle). This will put the calibration into 100hz mode and a little 100Hz message will appear on-screen to confirm this.

It's then possible to calibrate as normal.

I've done this with my Sony KX32FQ70U 100hz digital scan TV and it works perfectly!


EDIT!: Note that to use 100hz mode you must have PS2 Component cables and get the GunCon's composite sync through the PS2 AV Adaptor dongle which looks like this:
Attachment:
PS2 AV Adaptor.jpg
PS2 AV Adaptor.jpg [ 9.85 KiB | Viewed 98221 times ]

_________________
My Consoles:
Genesis - Nomad - SegaCD - GameGear - Sega Saturn - Dreamcast - NES - SNES - N64 - Gamecube - Wii - Playstation - PSone & LCD - PS2 - PS3 - Xbox - 3DS

Niode wrote:
Send him a dodgy cheque. Make it out to Scammy McScammerson.


Check out my sale thread below, NeoGeo MVS carts & Arcade gear wanted!:
viewtopic.php?f=22&t=11366


Top

 Post subject: Re: LCD vs CRT, Best Video Inputs and Lightguns on HD
PostPosted: Sat Jan 16, 2010 6:19 pm
Offline
Next-Gen
User avatar
 Profile

Joined: Tue Jan 05, 2010 10:59 am
Posts: 10176
Location: Southern California
Really great hidden info about Gun Con 2!

I added your Progressive scan mode mode info above.

Thanks!

Correct me if I'm wrong.

Hard to tell from pic but connections look like stereo audio out and 1 composite out at side. Cable end looks to have AV coming from Playstation. The bottom looks like it will take another Playstion cable out for composite, S-Video and Component.

Where would the Guncon 2 plug into this dongle?

Anyone find out anything on Dreamcast Lightgun with VGA to Component Transcoder?

_________________
.
CRT vs LCD HD, Lightguns and More Guides : Gamecube SD Card-PS2 Fat Hard Drive
Fumito Ueda TEAM ICO : PS3 YLOD : Playstation Controller xo∆ FAQ-DUAL ANALOG



Last edited by CRTGAMER on Thu Jan 21, 2010 6:33 pm, edited 3 times in total.

Top

Display posts from previous:  Sort by
Post new topic Reply to topic  [ 239 posts ]  Go to page 1, 2, 3, 4, 5 ... 24  Next

All times are UTC - 5 hours


Who is online

Users browsing this forum: No registered users and 0 guests


You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot post attachments in this forum

Search for:
Jump to:
